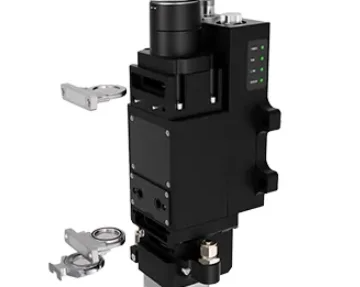

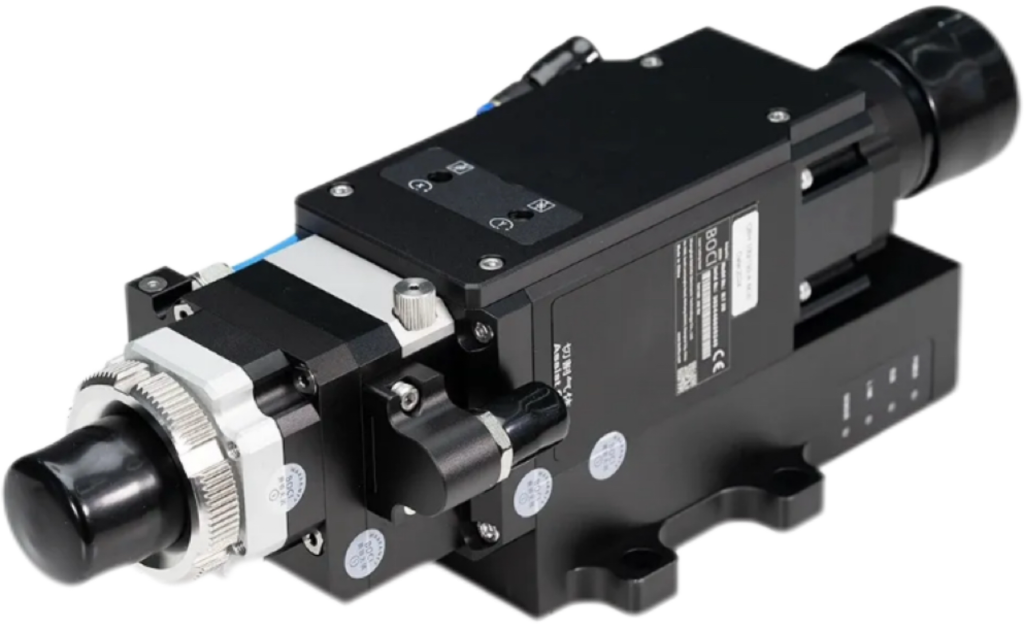

The cutting head is an important component of the fiber laser cutting machine. The main parts include: protective lenses, collimating and focusing lenses, nozzle ssensor heads, ceramic rings, etc. The cutting head accessories need to be replaced regularly, and the cutting head also needs to be maintained regularly during use to achieve better usage results.

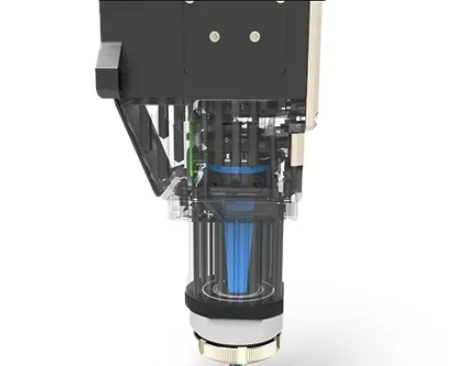

Adopt imported high-transmittance optical lenses and optimized optical path design, effectively reduce light loss, ensure stable laser energy output. The cutting precision can reach ±0.01mm, realizing fine cutting of various thin and thick metal sheets, with smooth kerf and no burrs.
Built-in multiple intelligent sensors, real-time monitor protective lens temperature, laser power, cutting head working status. With automatic fault alarm, over-temperature protection and collision avoidance functions, effectively avoid equipment damage, extend service life, and reduce maintenance costs.

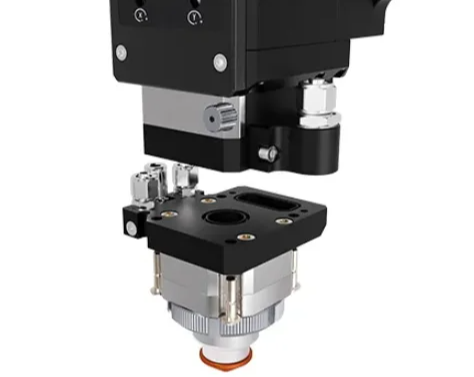

Adopt modular assembly design, the cutting head has compact structure and light weight. Standardized interface is compatible with most laser cutting machine brands on the market, realizing quick installation and replacement. Key components can be disassembled and maintained without professional tools, saving maintenance time and improving production efficiency.
| Product | Specification | Power Rate |
| BOCI Cutting Head | BLT310 | 4000W |
| BLT421 | 8000W | |
| BLT421S | ||
| BLT441 | 15000W | |
| BLT641 | ||
| BLT642H | ||
| BLT661 | 20000W | |
| BLT662H | ||
| BLT682H | 30000W |
