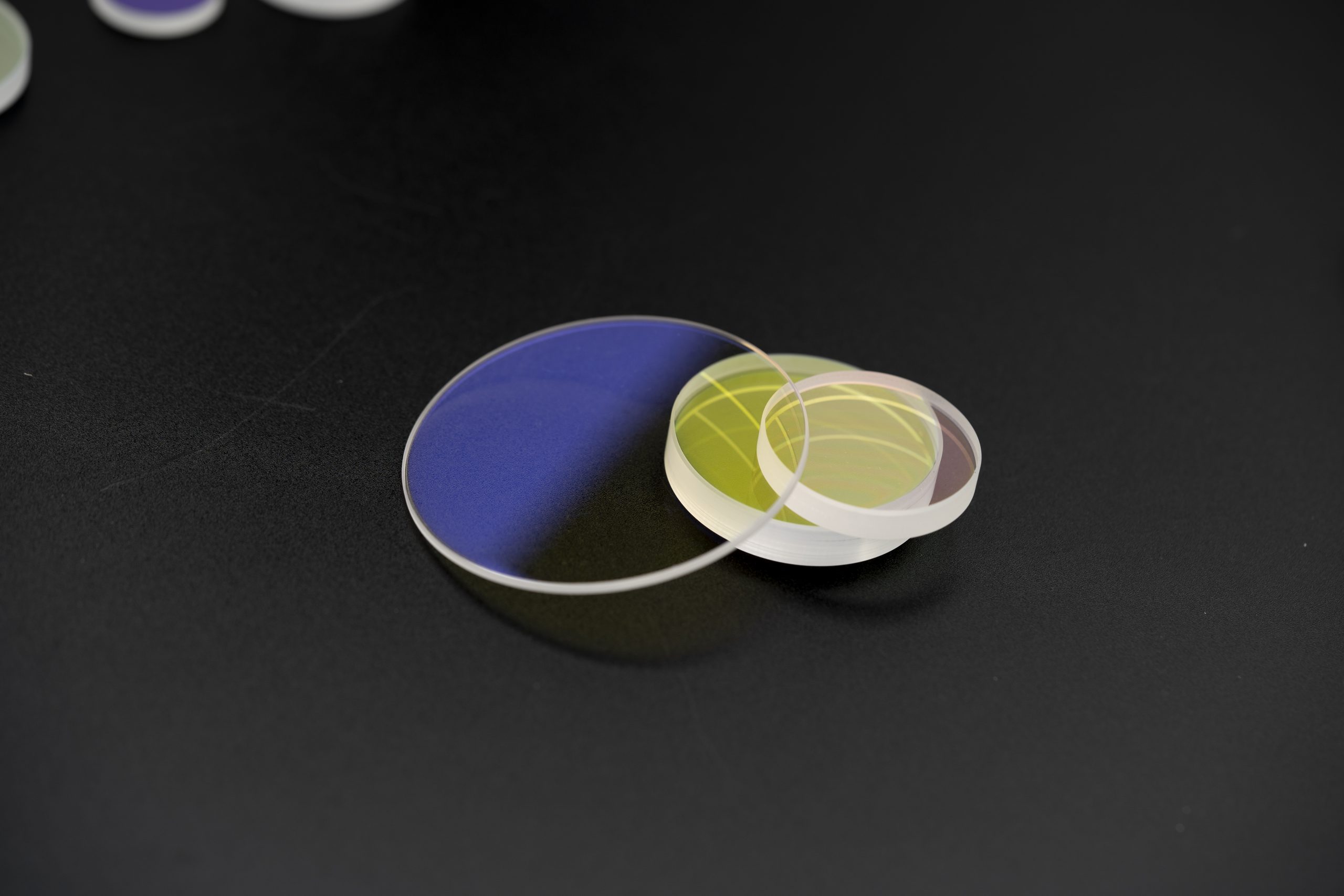

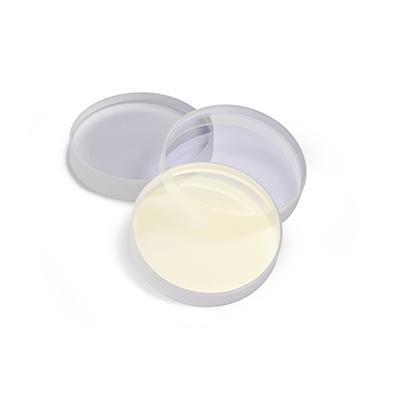

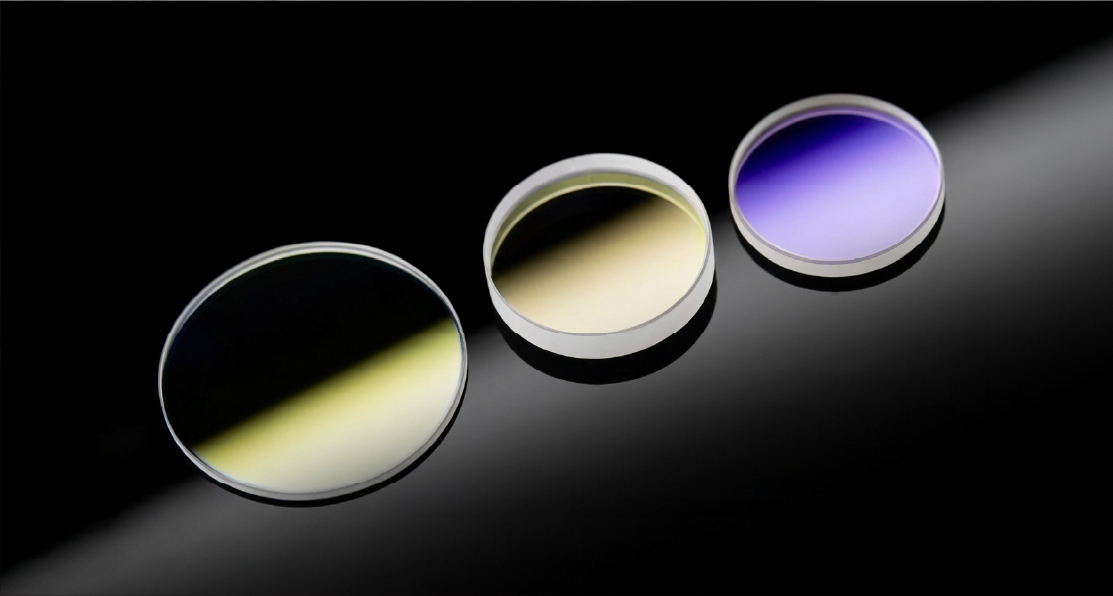

Plano Convex Lens is typically made from high-purity fused silica (also known as quartz). It is a type of optical lens characterized by one flat (plano) surface and one convex (outward-curved) surface. It is the component of collimating lens and focusing lens for fiber laser welding and cleaning.
Uncoated optical glass lenses offer ≥92% transmittance in the visible spectrum, while AR-coated versions reach ≥99.2%, ensuring minimal light loss and maximum efficiency.
Optimized curvature design reduces spherical aberration, making these lenses ideal for collimation, focusing, and imaging systems where precision is critical.
Choose from high-refractive-index optical glass for high-temperature and high-precision applications, or lightweight optical plastic for cost-sensitive, low-weight requirements.
| Diameter | Focus | Effective Aperture(mm) |
| D16 | F50 | 5.0 |
| F60 | ||
| D20 | F50 | 3.5、4.5、5.0 |
| F125 | 3.5、4.5 | |
| F150 | 3.0、4.5 | |
| F200 | 3.8、4.5 | |
| F400 | 3.5、4.0 | |
| F600 | 3.9、4.5 | |
| F800 | 3.2、4.5 | |
| D24 | F120 | 7.1 |
| D25 | F60 | 5.0 |
| F125 | 4.5 | |
| F150 | ||
| F200 | – |
